Product DescriptionCompany Info.<>
- Processing customization:
- Yes
- Rated current:
- 380 A
- Short circuit turn-off current:
- 10-600KA KA
- Shell protection class:
- IP66
- Overall dimension:
- customized mm
- Shell material:
- aluminum alloy
- Model:
- Customized dust explosion-proof positive pressure cabinet
Details:

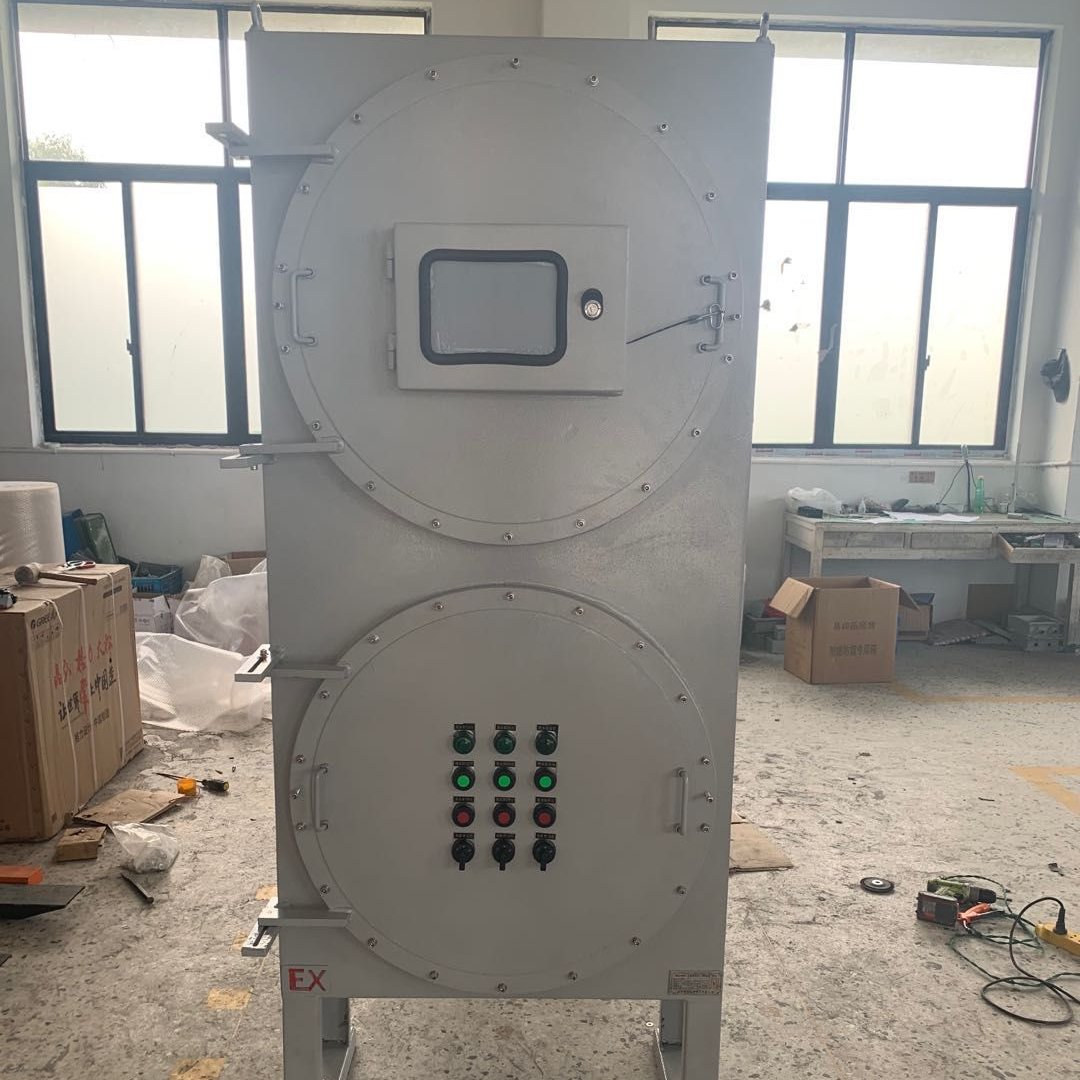

Custom dust explosion proof positive pressure cabinet ventilation positive pressure explosion proof distribution cabinetProduct characteristics:
A1. This product is mainly composed of cabinet, automatic control system, gas distribution system, alarm system and power distribution system; cabinet is composed of positive pressure chamber and auxiliary chamber, positive pressure chamber is equipped with power distribution system components of users, and auxiliary chamber is equipped with automatic control system.
A2. Cabinet products adopt ggd cabinet frame, main and auxiliary panels are left-right structure, cable trench installation, lower incoming wire, front door operation, rear door maintenance.
A3. Box-type products adopt---steel plate--structure, main and auxiliary plates are upper and lower structures, hanging installation, lower wire entry, front door operation and maintenance.
A4. The piano table products adopt---steel plate folding---molding, the main and auxiliary plates are front and rear structures, seat installation, lower line, piano table operation, rear door maintenance.
A5. According to the air intake mode, it is divided into ventilation type and compensation type. Ventilation type for uninterrupted continuous air supply, positive pressure cavity built-in components of the working heat can be taken away with the gas path, with---heat dissipation function, suitable for solving the heat dissipation problem of high-power explosion-proof inverter; compensation type for intermittent air supply, positive pressure cavity to have---sealing, ---small air consumption.
A6. The user must provide the air source, the requirement is: purified air or nitrogen, the air source pressure is: 0.2~0.8mpa; usually the instrument air at the user site can meet the requirements.
GB710 -88 cold-rolled steel plate is generally used as steel plate material, and GB3280 -84 stainless steel material can also be selected according to user requirements.Custom dust explosion-proof positive pressure cabinet ventilation positive pressure explosion-proof distribution cabinet scope of application:
1. Suitable for gas environment Zone 1 and Zone 2;
2. Suitable for combustible dust environment 20, 21, 22 area;
3. Suitable for IIA, IIB, IIC gas environment;
4. Suitable for temperature group T1—— T6 environment;
5. Suitable for oil extraction, storage, chemical, pharmaceutical, textile, printing and dyeing, and military facilities and other hazardous environments;
6. Power distribution for lighting or power lines.
