    Basic Info.
    Processing customization:
    Yes
    Rated current:
    380 A
    Short circuit turn-off current:
    10-600KA KA
    Shell protection class:
    IP66
    Overall dimension:
    customized mm
    Shell material:
    aluminum alloy
    Model:
    BXX51
    Product Description

    Details:

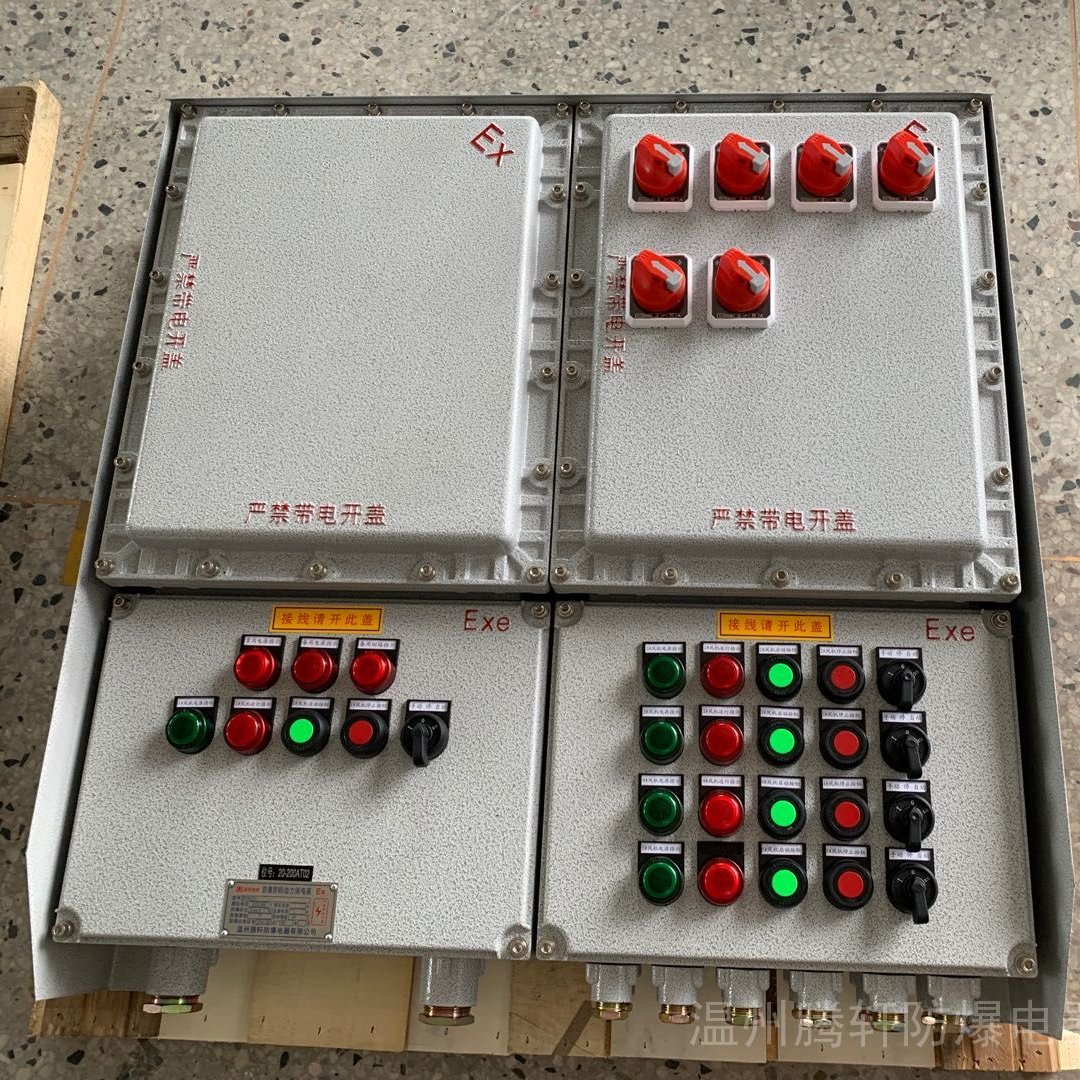

    BXX51 dust explosion-proof power socket maintenance box Product parameters:
    1. Executive standards: GB3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079-0, IEC60079-1,  explosion-proof power maintenance box BXX51 -2/60K120XD substation junction box IEC60079-7, IEC61241-1-1
    2. Explosion-proof mark: ExdellBT6, ExdellCT6, DIPA20TA,T6
    3. Rated voltage: AC220/380V
    4. BXX53-2/50K100XD Pole number: 1P+N+PE/3P+PE
    5. Rated current of main circuit: 200A

    6. Number of branches: 2, 3, 4, 5, 6

    Features:

    7. Branch rated current: 16A, 32 A
    8. Protection grade: IP65 explosion-proof maintenance box
    9, corrosion grade: WF1
    10. Inlet specification: G1″ ~G2″
    11. Applicable cable outer diameter:Φ 11mm~Φ 38mm
    12. Direction of incoming and outgoing lines: explosion-proof power supply maintenance box for incoming lines BXX51 -2/60K120XD substation junction box explosion-proof maintenance power distribution box, incoming lines (conventional incoming lines, please indicate for incoming lines)

    13. Installation mode: hanging type, vertical type



    BXX51 Dust explosion-proof power socket inspection boxProduct application:

    Explosion-proof power supply overhaul box dust place is divided into three areas: 20, 21 and 22 areas
    Zone 20: Places and container interiors where combustible dust occurs continuously or frequently during normal operation in sufficient quantities to form combustible dust and air mixtures and/or where a controlled and extremely thick dust layer may form.
    Zone 21: During normal operation, explosion-proof power maintenance box BXX51 -2/60K120XD substation junction box may have dust quantity sufficient to form combustible dust and air mixture but not classified into Zone 20. This area includes places directly adjacent to dust charging or discharging, places where dust layers appear in explosion-proof power service boxes and places where combustible dust and air mixtures of combustible concentrations may be produced under normal operating conditions.
    Zone 22: explosion-proof power service box Under abnormal conditions, explosion-proof power service box combustible dust cloud occasionally appears and only exists for a short time, explosion-proof power service box BXX51 -2/60K120XD substation junction box or combustible dust occasionally accumulates or dust layer may exist and combustible dust air mixture is generated, but it is not classified into Zone 21. If combustible dust accumulation or dust layer cannot be excluded, it should be classified as Zone 21. Explosion-proof power maintenance box BXX51 -2/60K120XD substation junction box
